Pharmaceutical Blister Packaging: Forming Films, Lidding and Barrier

Pharmaceutical blister packaging holds each tablet or capsule in its own sealed cavity, formed in a plastic or aluminum laminate web and closed with a lidding foil. Selecting a web from flat-film barrier alone can leave the formed cavity or seal unable to protect the drug. Compare the forming web and lid against final-pack stability and opening requirements. The forming film sets most of the barrier, and the lid sets how the pack opens. This page covers the pharmaceutical side. Blister packaging as a format covers blisters across all industries.

Forming web comparison

This is a mechanism comparison from public documentation, not our testing. No matched dataset for all grades, gauges and test conditions is available here, so overlapping performance ranges are not assigned a resin-family ranking.

Scroll horizontally to view all columns if needed. ↔

Web	Barrier mechanism	Inputs needed for comparison	Formed-cavity validation
PVC	Base polymer web	Grade, thickness, WVTR temperature/RH	Check wall distribution and final-pack stability
PP	Different base polymer; no universal PVC/PP ranking	Grade, thickness, same test method and conditions	Qualify forming settings, thin regions and lid match
PVDC-coated web	Coating adds barrier	Base web, dry coat mass per area, coating grade, test conditions	Check coating integrity and formed-pack performance
PCTFE laminate	PCTFE layer adds moisture barrier	Layer grade/thickness, laminate construction, test conditions	Map thinned walls/corners; test the sealed pack
Cold-form foil laminate	Aluminum barrier layer	Layer specification, cavity geometry, lid system	Inspect drawn corners for cracks; verify seal integrity

Blister forming film options

A blister forming film is the bottom web that is thermoformed (or cold-formed) into cavities. Several families are used.

PVC

PVC is a clear forming-web option. Confirm grade-specific barrier and final-pack stability before treating it as suitable for a drug.

PVDC-coated PVC

PVDC coating adds barrier to a base web. Manufacturer public documentation describes grades with differing coat weights; obtain dry coating mass, base-web details and forming guidance for the exact grade.

PCTFE laminates

PCTFE laminates provide a clear moisture-barrier route. Public manufacturer documentation describes multiple barrier grades; PCTFE thickness and the complete laminate matter. “Lowest WVTR” cannot be assigned without a matched comparison.

PP

For PP forming film, obtain the actual grade, forming window and lidding specification. Do not infer moisture performance or forming temperature from the polymer name alone. PP film covers the polymer in general.

Cold-form laminates

Cold-form webs use a nylon/aluminum/PVC laminate pressed into cavities without heat. See cold form foil and alu-alu blister packaging.

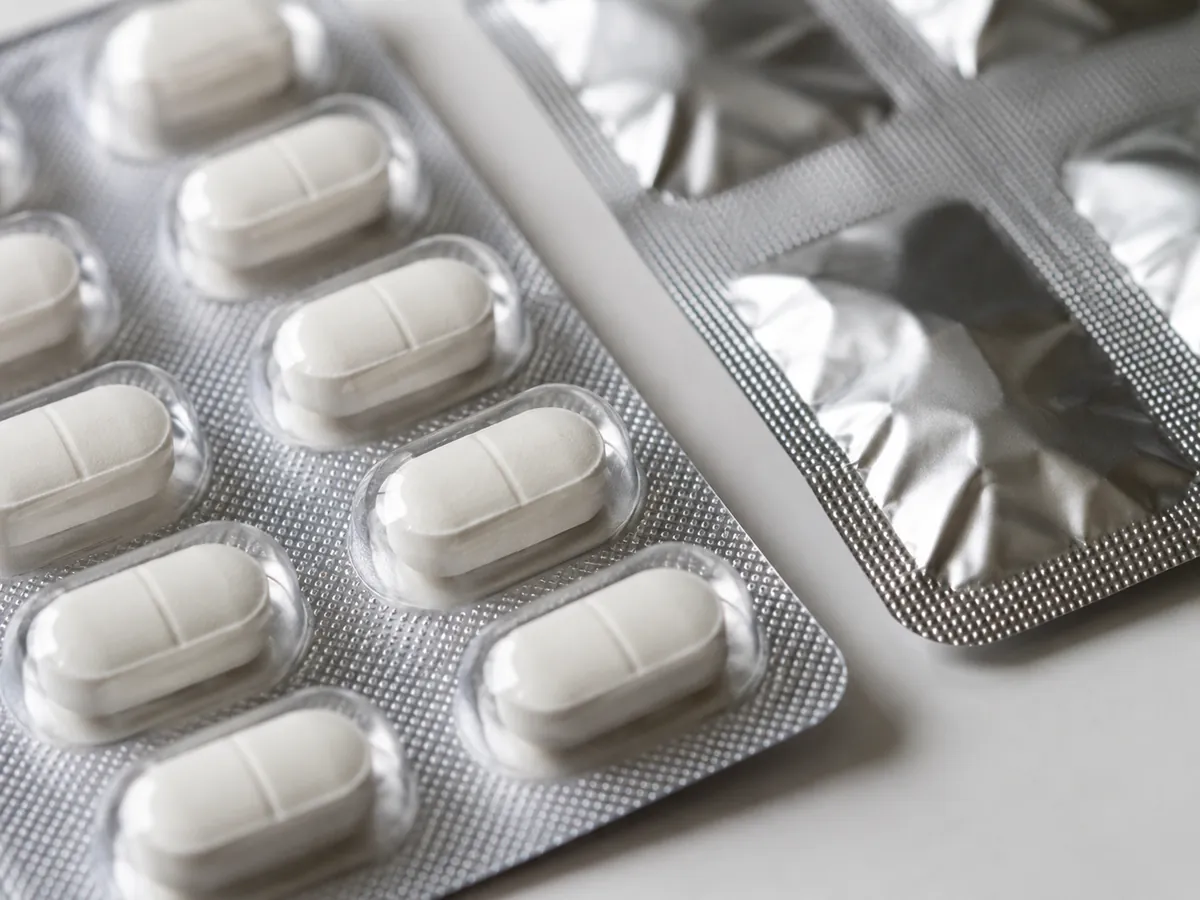

Clear blister cavities with tablets next to a silver alu-alu blister strip — Clear forming film allows inspection of the tablet; an aluminum-containing cold-form web is opaque.

Flat-film data and the formed cavity

Compare WVTR only at matched grade, gauge, temperature, humidity and method. Flat-film data cannot by itself establish finished-blister shelf life. Manufacturer forming guidance connects cavity wall-thickness distribution to barrier performance; the sealed pack also includes the lid and seals.

Conceptual cross-section, not to scale: forming redistributes material. Mark measured thin regions; this drawing supplies no thickness or barrier values.

Cold-form alu-alu at the high end

In an alu-alu blister the cavity wall itself contains aluminum. Whole-pack protection still depends on formed-foil integrity and the sealed lid. The trade-offs are:

The tablet is not visible.
Forming depth is limited by how far the laminate can stretch, so cavities are shallower or wider and the pack is bigger.
Confirm cold-forming speed and tooling on the proposed machine.
Compare the actual laminate and tooling costs for the project.

Evaluate this route when product stability requires an opaque barrier cavity.

Lidding

Push-through lids can use hard-temper aluminum foil with a printed outer face and a heat-seal lacquer matched to the forming web. Push-through, peelable and peel-push variants exist, and the lacquer must be validated for the specific web. Blister foil has the details, and the wider foil family is in the pharmaceutical packaging foil guide.

Child-resistant and senior-friendly designs

Child-resistant blisters usually add peel-push lidding (a paper or PET layer peeled back before the tablet is pushed through) or a layout that requires a tear-and-peel sequence. For US products subject to special-packaging requirements, CPSC guidance links child and adult-use testing to 16 CFR 1700.20. Check applicability to the product and finished design; choosing a peel-push material alone is not validation.

Climatic zones and stability

ICH Q1A(R2), §2.2.4 addresses stability in the proposed marketed container-closure system. Record the product-specific storage conditions and intended markets. Hot and humid regions place more load on the moisture barrier, so a pack that suits a temperate market may not hold up in another. Your stability plan and regulatory team set the actual conditions and assess later packaging changes.

Blister machine considerations

Forming: thermoforming needs heated forming stations and plug assist for depth; cold-forming uses a press with no heat.
Film handling: web tension, indexing and cavity geometry affect wall thickness and defects.
Sealing: temperature, pressure and dwell must match the lacquer and web. Flat-plate sealers suit intermittent machines; rotary sealers suit continuous, higher-speed lines. Seal initiation temperature describes how heat-seal behavior is measured.
Printing and coding: batch and expiry codes are applied to the lid or laminate and checked by vision.
Change parts: a new cavity shape needs new tooling.

Finished-blister check record

Scroll horizontally to view all columns if needed. ↔

Check	Record before release
Material and barrier	Grade, layer gauges/dry coating mass, method, temperature/RH and document revision
Forming	Tool/cavity depth, forming settings, thickness map, cracks or defects
Lid and seals	Lacquer/base-web match, sealing settings, strength and integrity results
Product stability	Protocol/report, tested configuration, shelf-life decision
Opening and changes	Child/adult-use applicability and report; material lot and change assessment

Use the pharmaceutical packaging overview to keep stability and material-source records together.

Sources

Reviewed 8 October 2026: ICH and CPSC links above cover stability and US special-packaging requirements. Manufacturers’ public documents support the grade-dependent mechanisms and wall-distribution explanation: a coated-film grade release, a PCTFE grade page and a forming tooling guide. They are source documents, not product recommendations. They are not our measurements or a cross-grade ranking.
